Advanced Soft Deck Repair

all the complications: EPS & PVC foams, Carbon, veneer

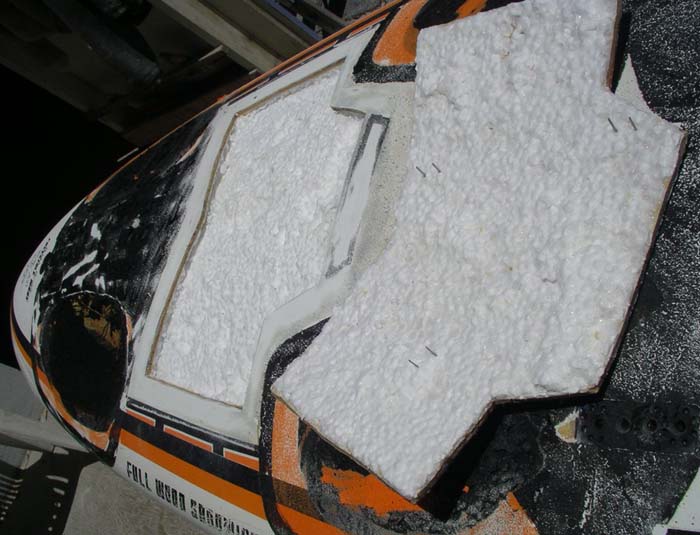

fatigue from hard use, EPS compacted, separated

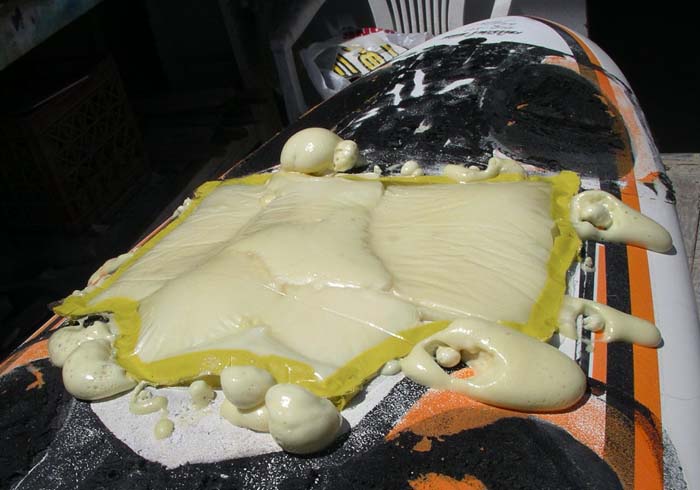

injecting Marine Urethane foam from the sides. A plastic film forces the expanding foam down into the EPS, filling crevices and gluing chunks back together
after the Urethane blobs are faired, the inner Carbon cloth plus Herex PVC sheet foam are vacuum-bagged
Herex is feathered out and faired

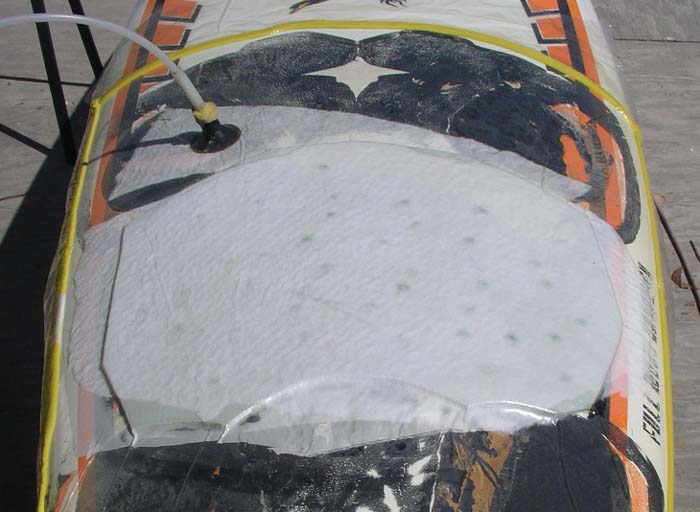

veneer is vacuum-bagged into a layer of 4oz fiberglass cloth
veneer emerges from the vacuum bag

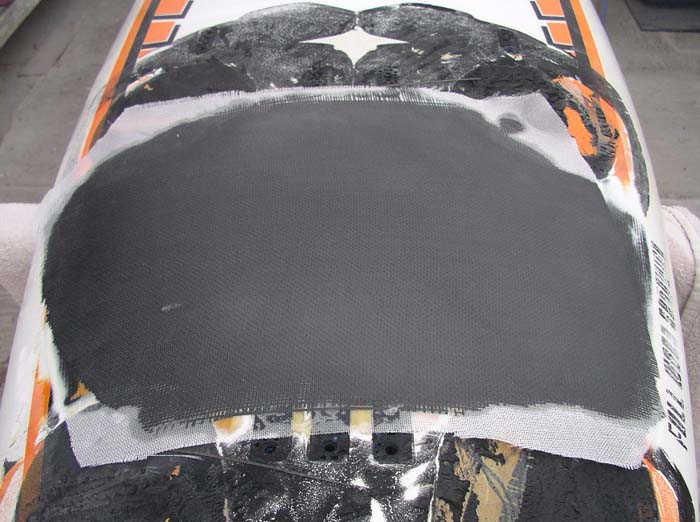

veneer feathered out, then "glassed" over with Carbon cloth, plus a sacrificial layer of fiberglass cloth

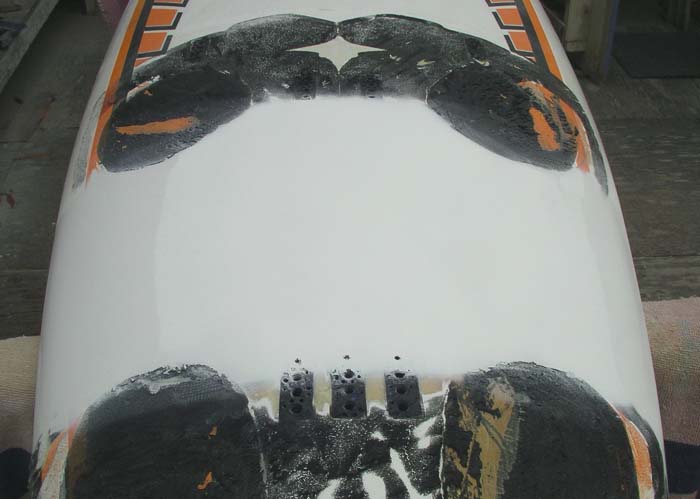

faired, primed, painted with LP

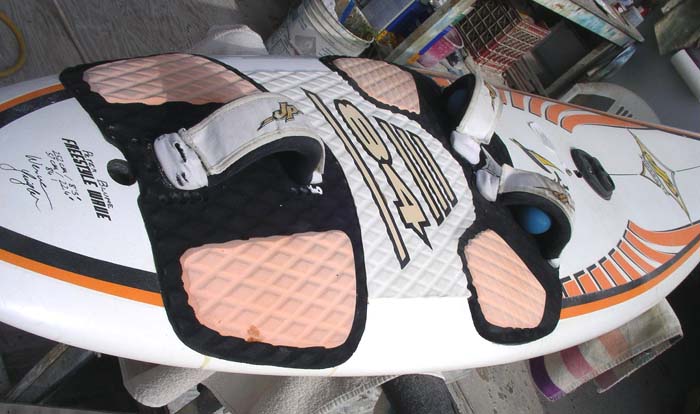

all back together

weight gain approx 1 1/2oz
