unfortunate high-speed impact with
corner of dock |
 |
|

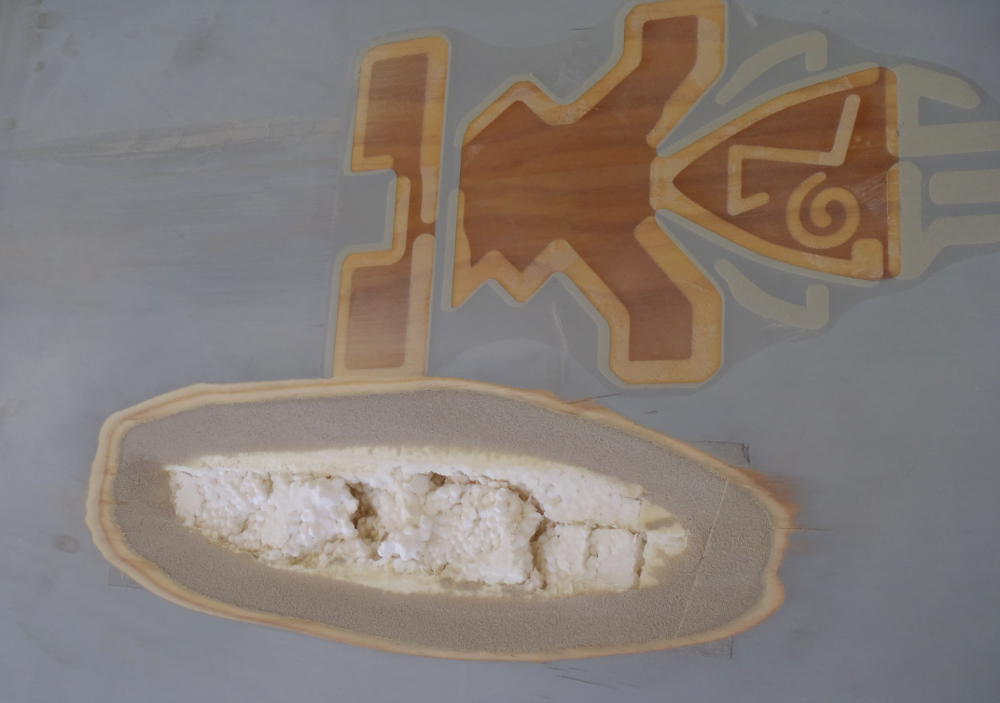

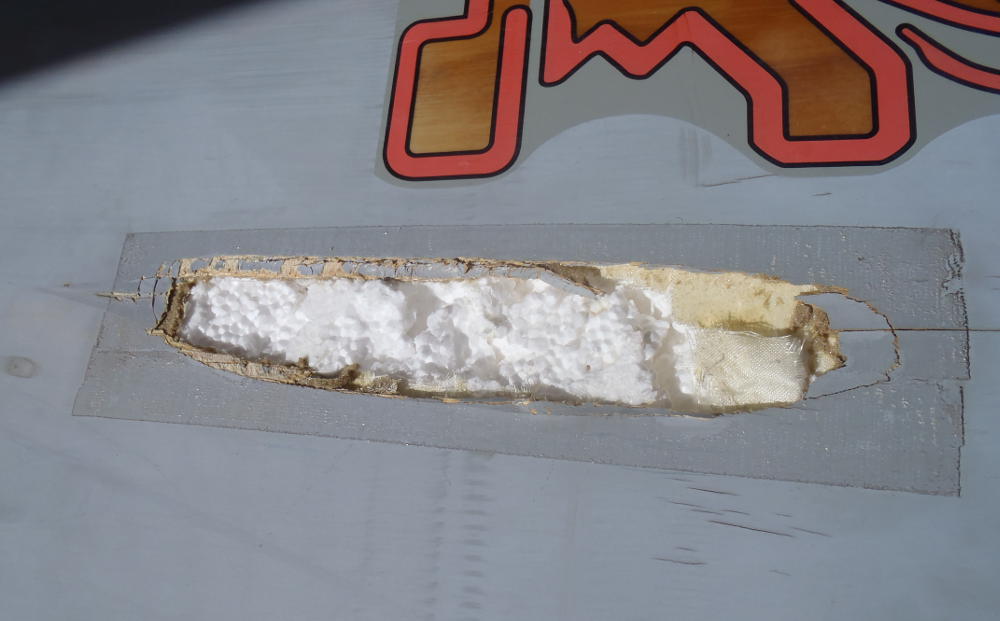

Divinny & veneer bevelled, next for the
EPS core restoration (inject Urethane, cap with 1/2" EPS "lid") |
 |
|

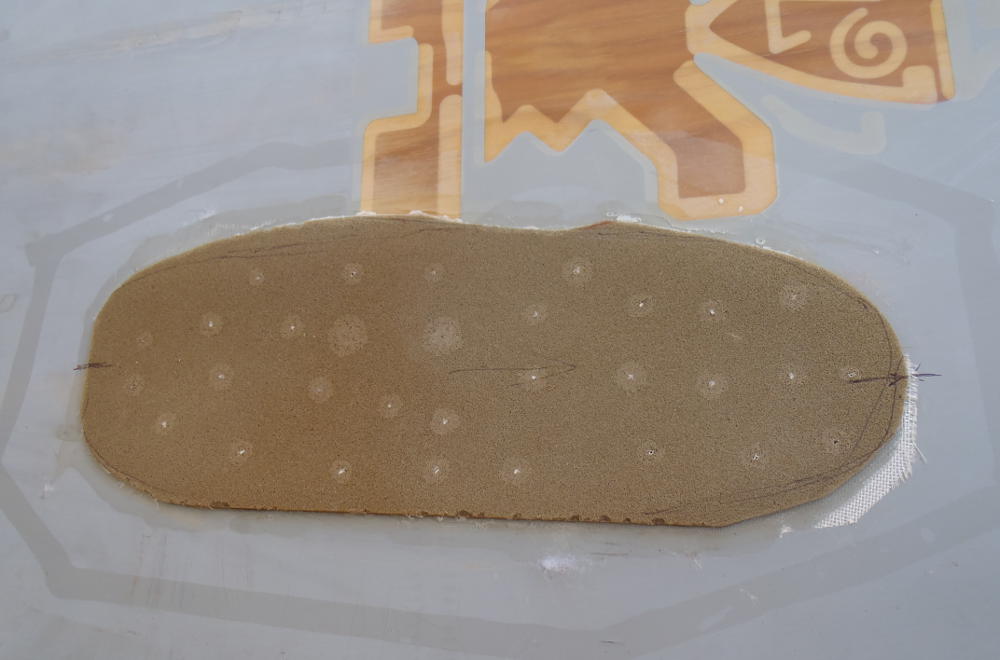

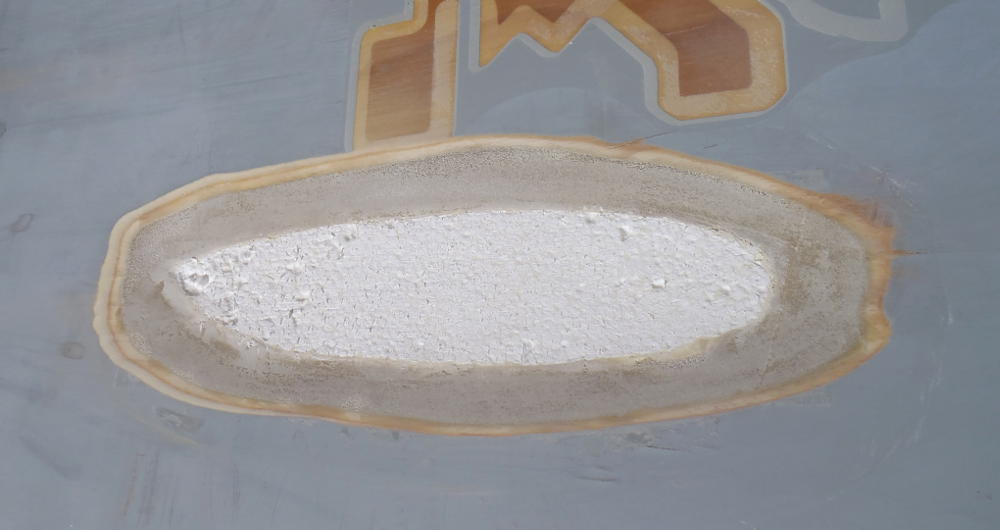

core rebuilt, ready for new structurals |
 |
|

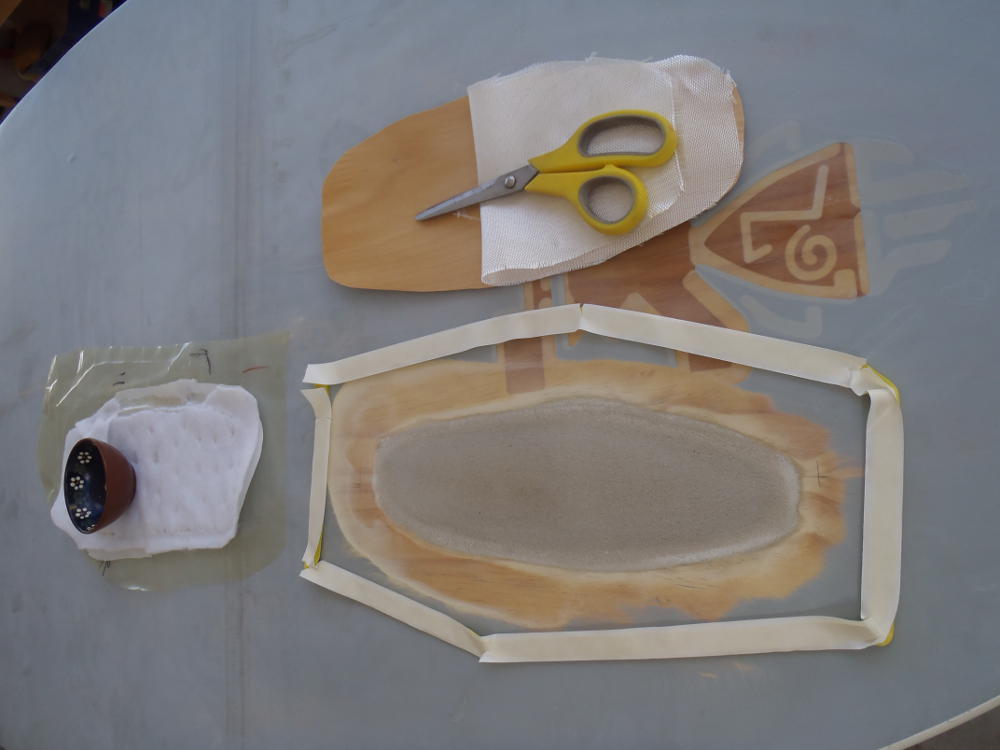

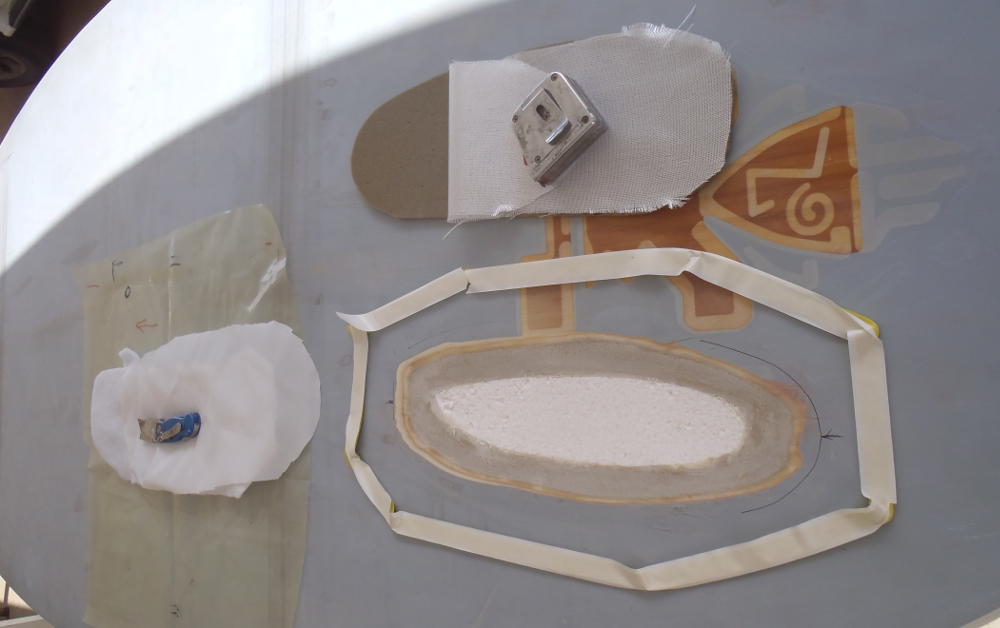

all laid out for first round of
vacuum-bagging (new inner glass plus 1/8" Divinny) - on a hot day, you have
got to have your ducks in a row! |
 |
|

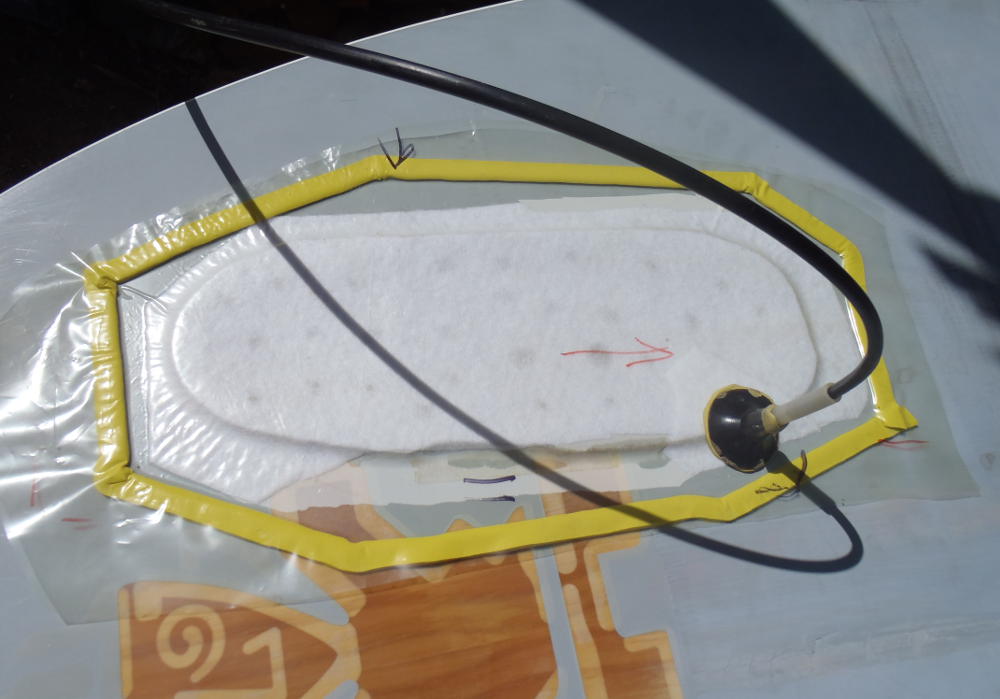

vacuum-bagging new inner glass &
Divinny |
 |
|

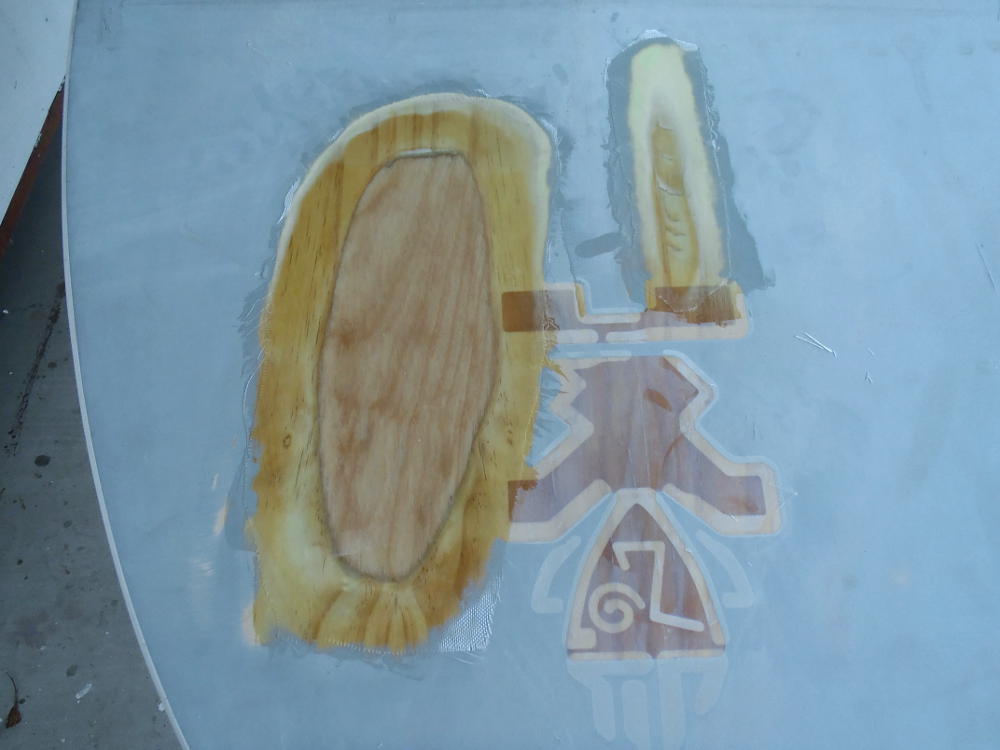

weird blob emerges from the vacuum-bag |
 |
|
but feathers out nicely, with bevelled edges all around;
a recess has been created for the new veneer |
 |
|

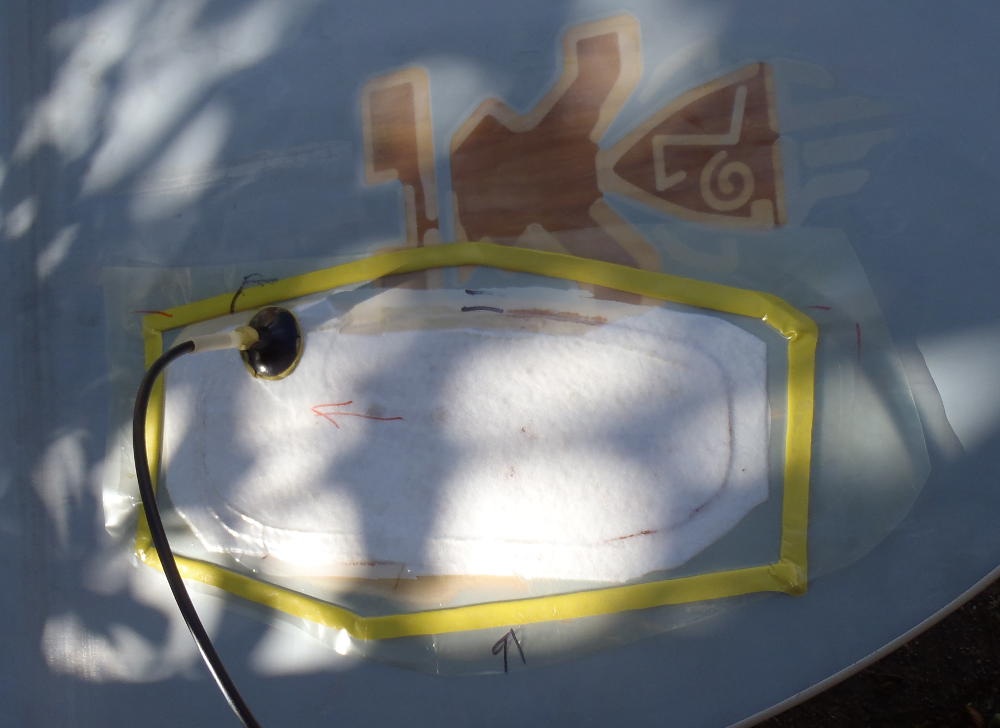

new veneer being vacuum-bagged |
 |
|

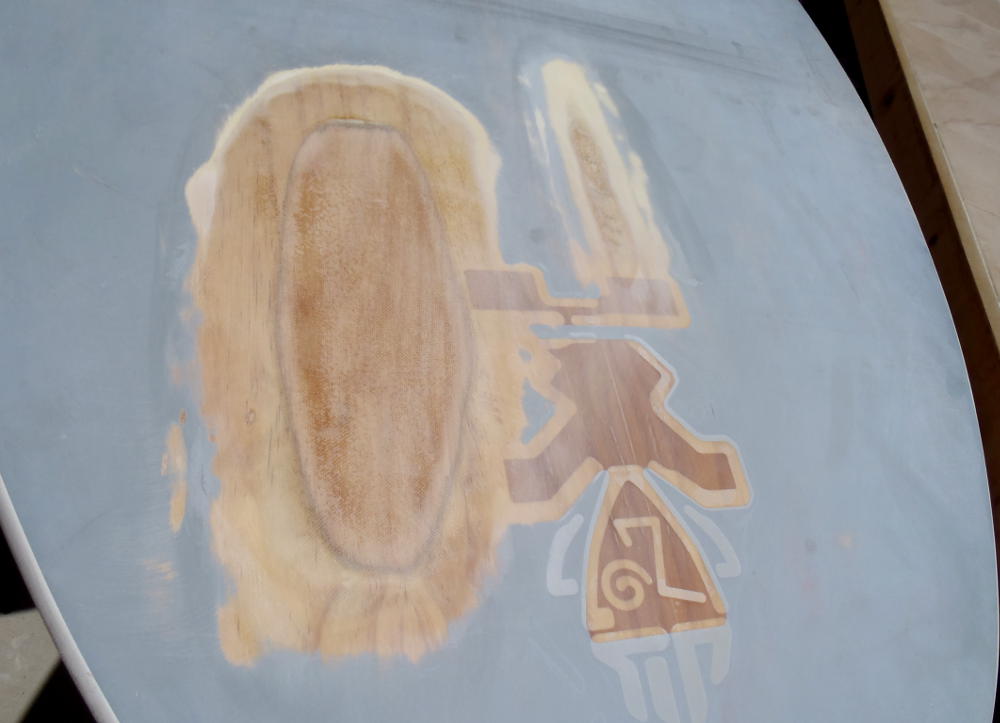

a bit rough looking when it emerges from the vacuum bag |
 |
|

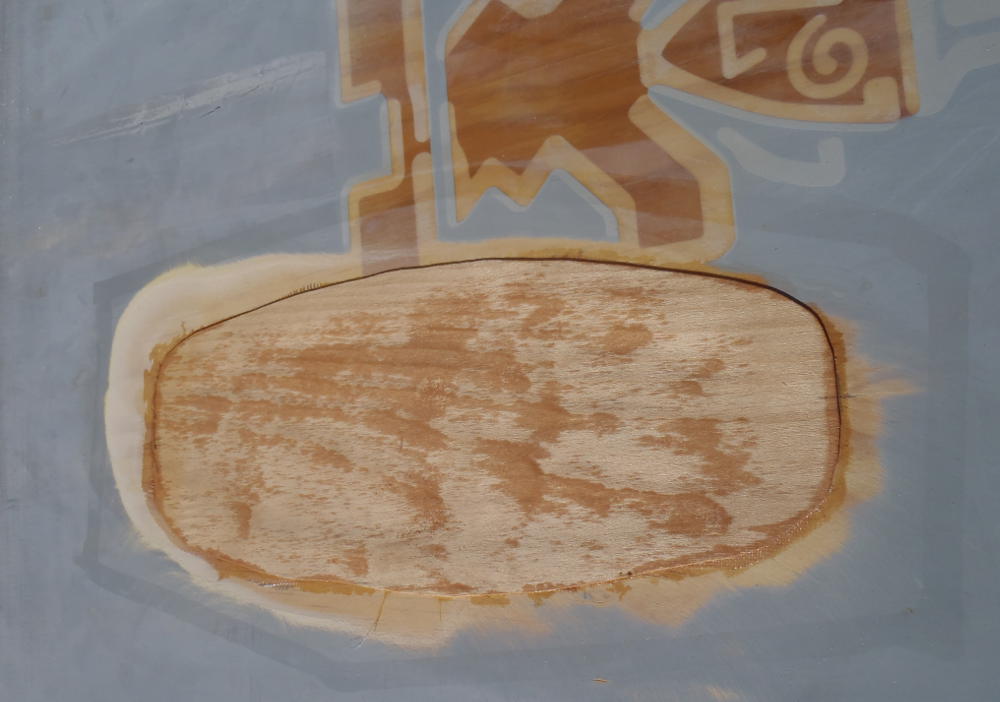

but feathers out well when sanded flush; a bit of a
recess has been sanded for an outer layer of fiberglass to seal it all |
 |
|
glassed over with 4oz of fiberglass cloth in Epoxy - all
structurals done! |
 |
|
fiberglass feathered out |
 |
|
slathered with Epoxy fairing compound |
 |
|
and most of it sanded off again... |
 |
|

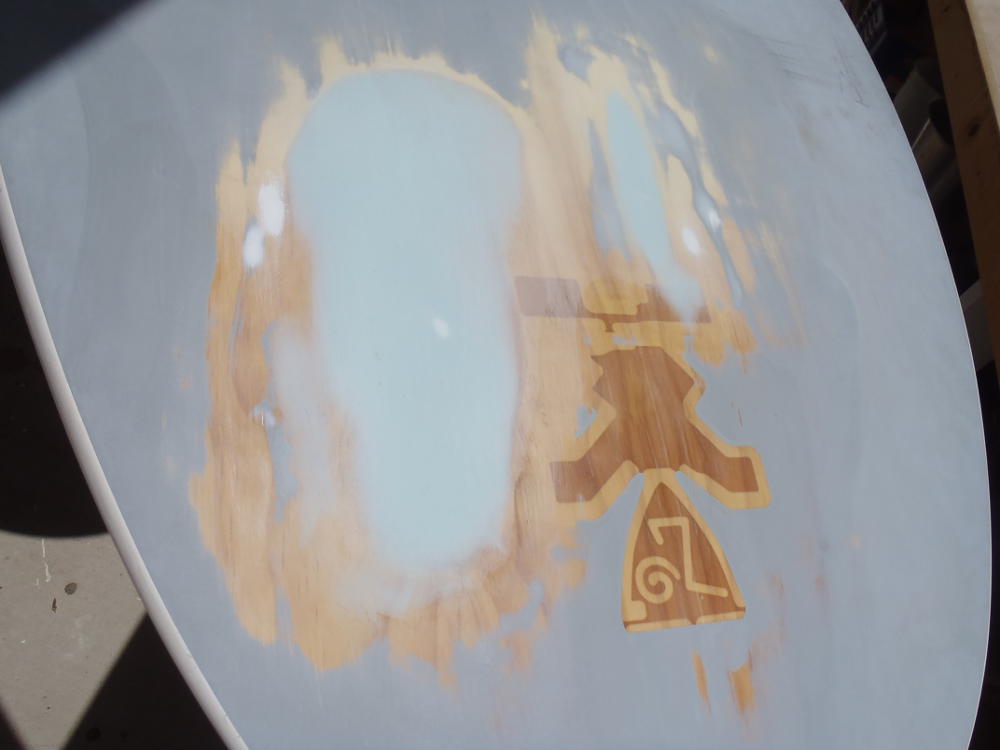

coated with LP - this is as close as I could come with
the paints that are still viable |
 |
|

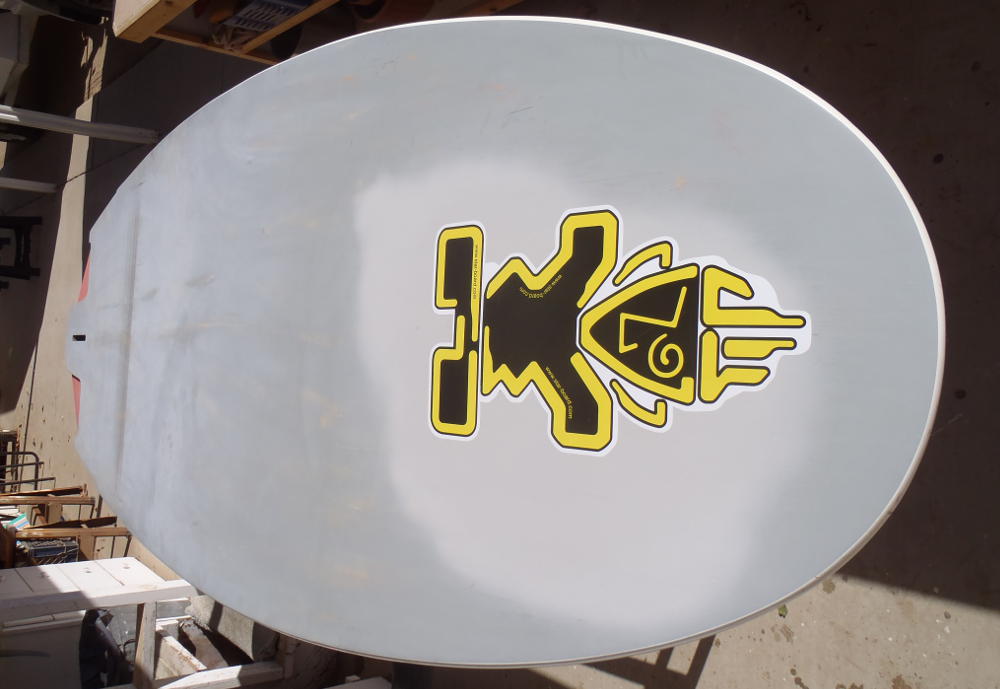

sanded out and decal affixed - weight out 25.20#, down
from check-in weight of 25.27# |
|
