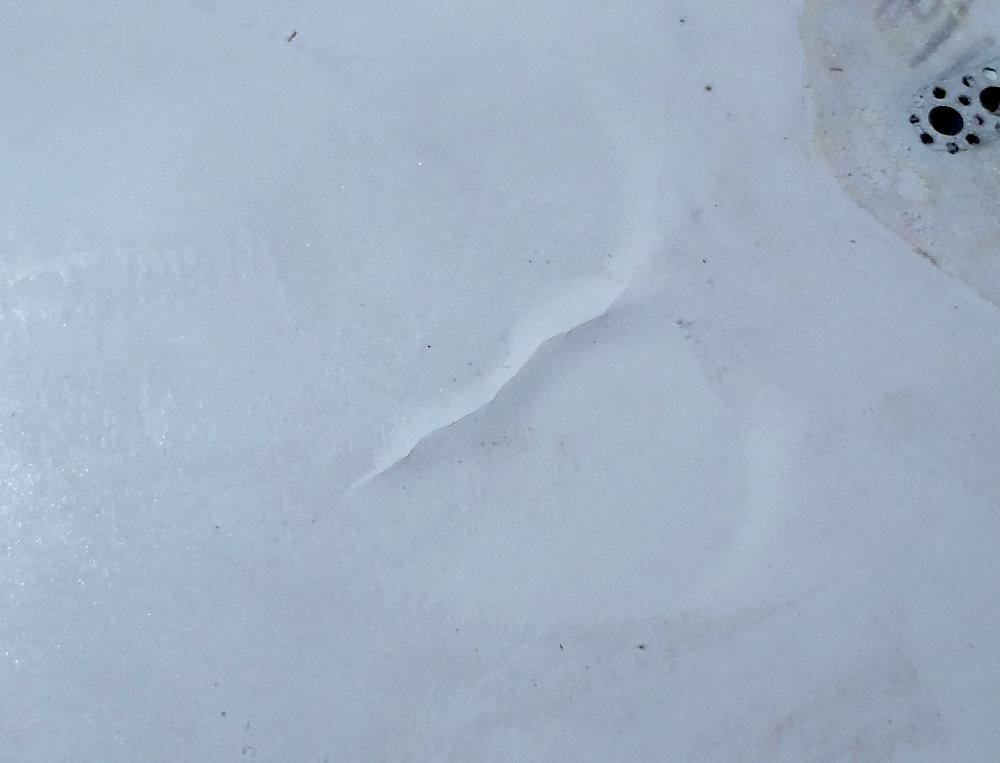

sharply outlined depression w/ crease -
this was a foreign object, NOT fatigue! |
 |
|

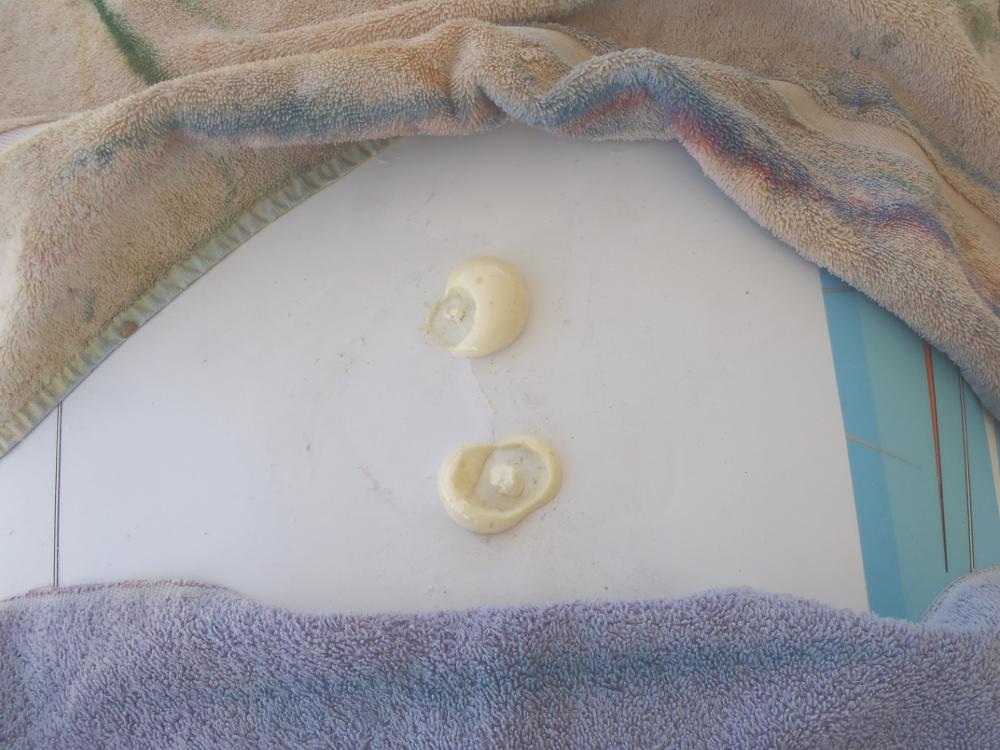

inject Marine Urethane to stabilize EPS
core where soft & crunchy |
 |
|

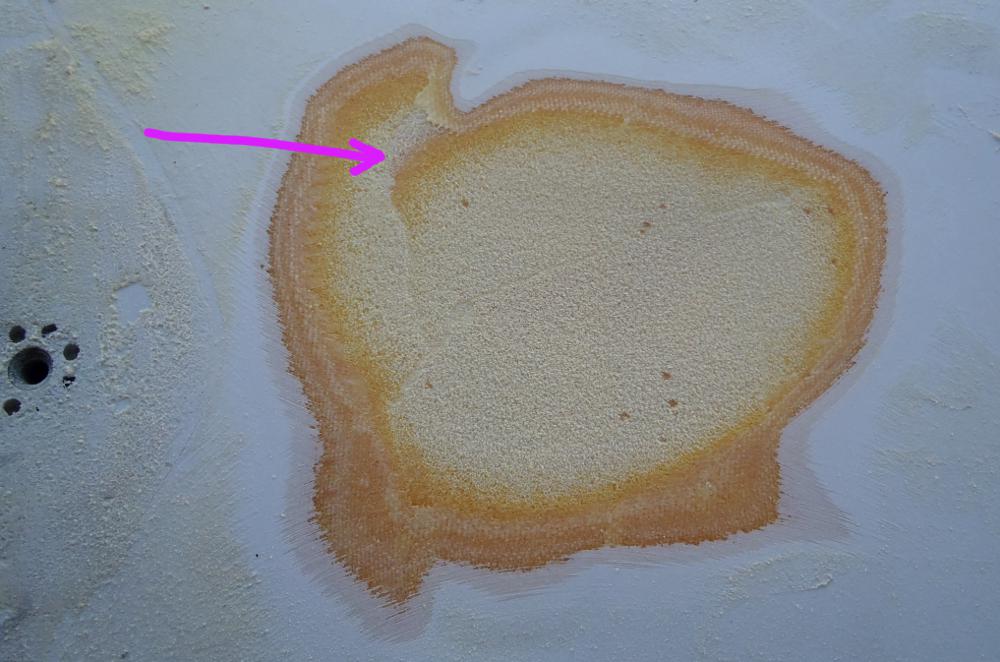

grind away fractured material; find NO
veneer, NO Carbon; find Corecell instead of Divinycell; find some sort of
factory patch (purple arrow) |
 |
|
all fractured material removed; edges
beveled for new inner glass and Corecell |
 |
|

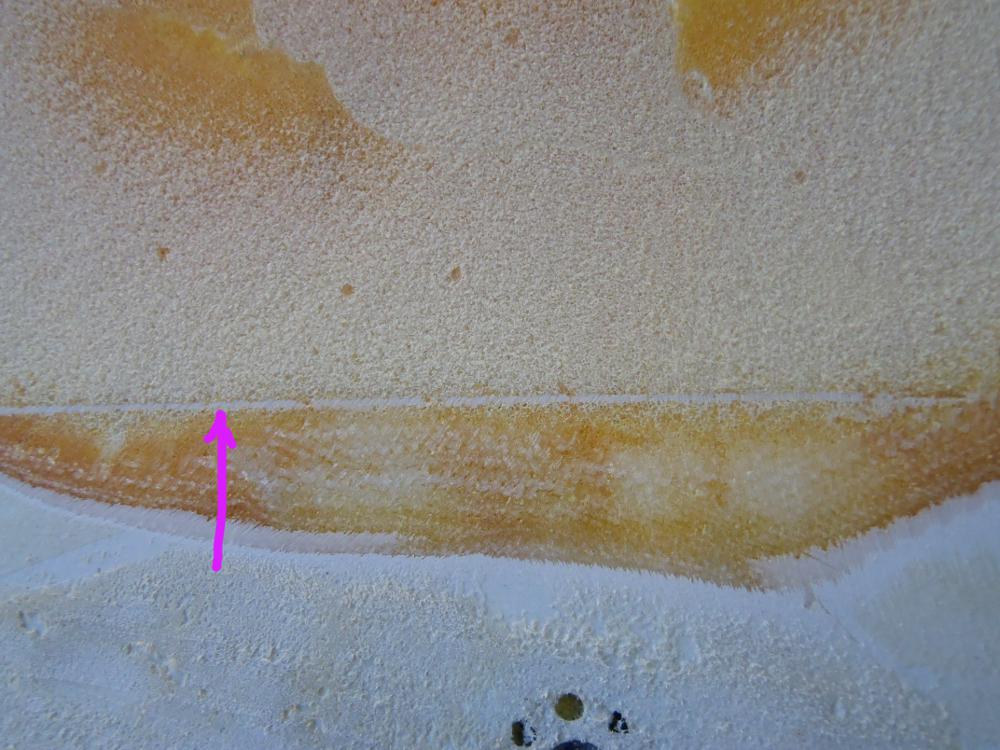

unfortunate butt joint in the Corecell (sure wish the
factory would place those in structurally less significant areas!) |
 |
|
all ready for first round of vacuum-bagging |
 |
|

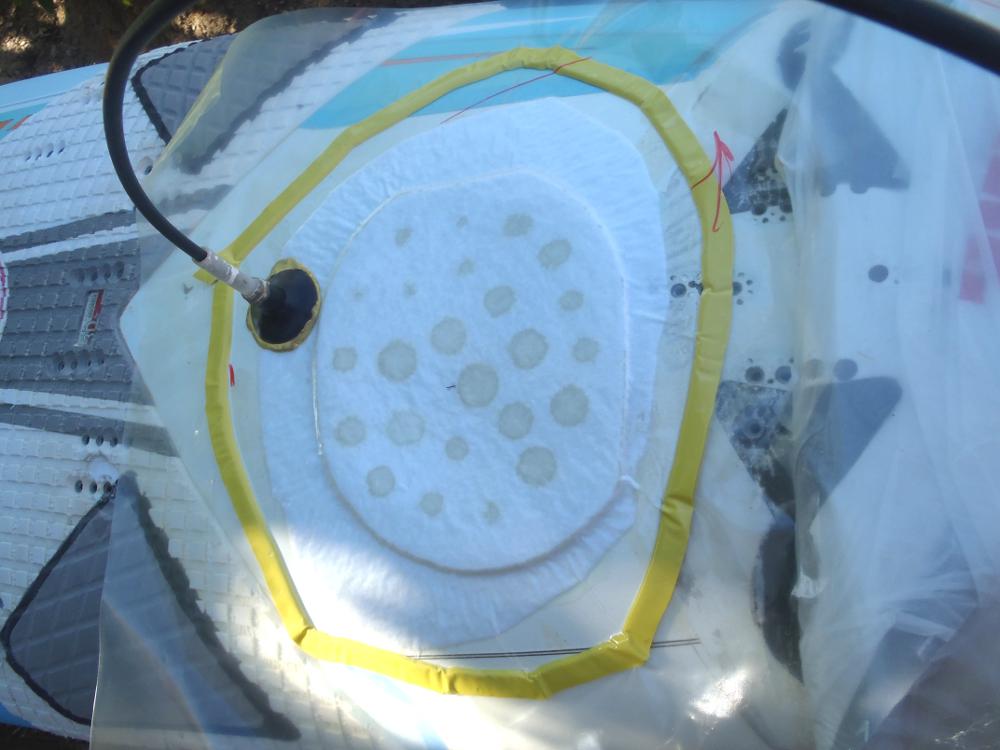

new inner glass & Corecell vacuum-bagged |
 |
|

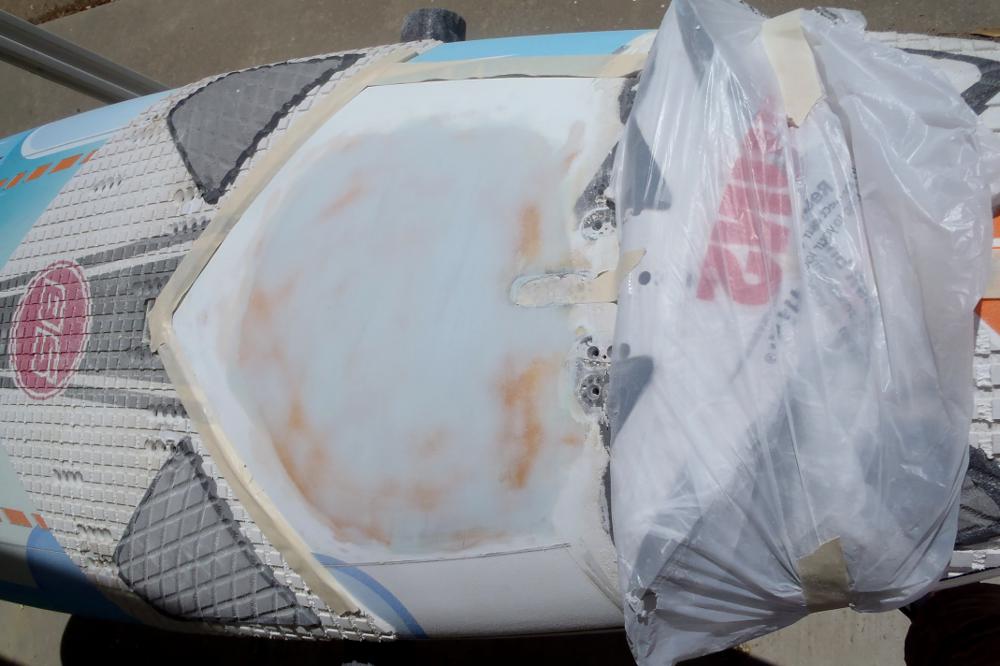

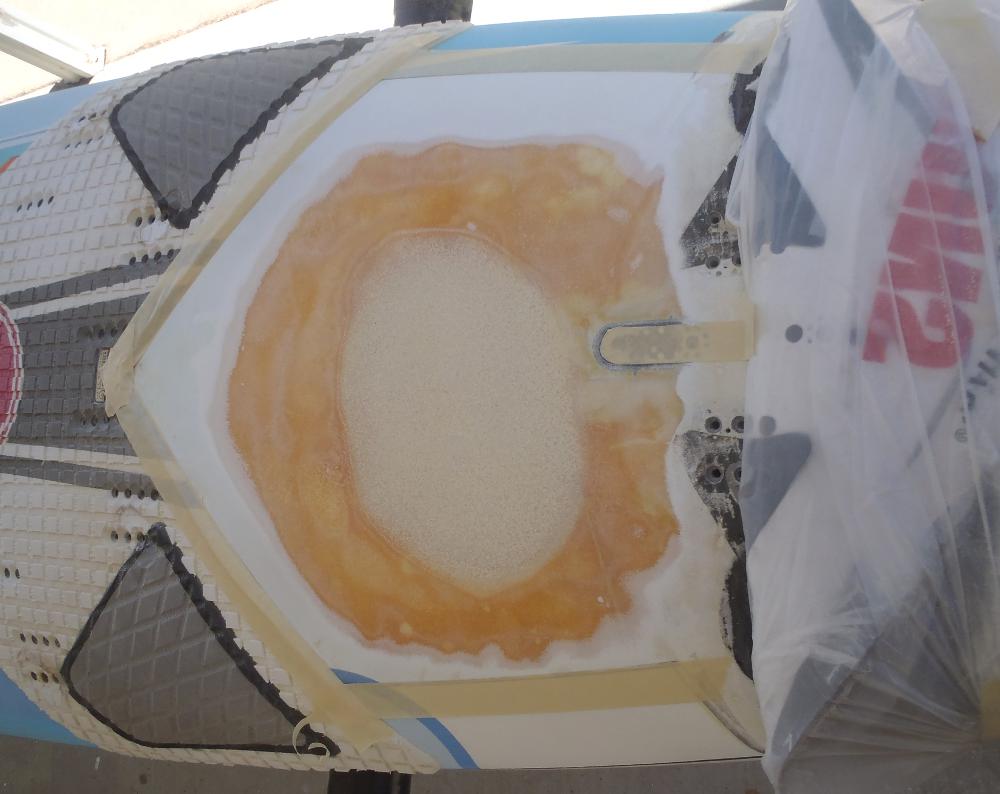

new Corecell feathered out, everything taped off for new
outer glass |
 |
|

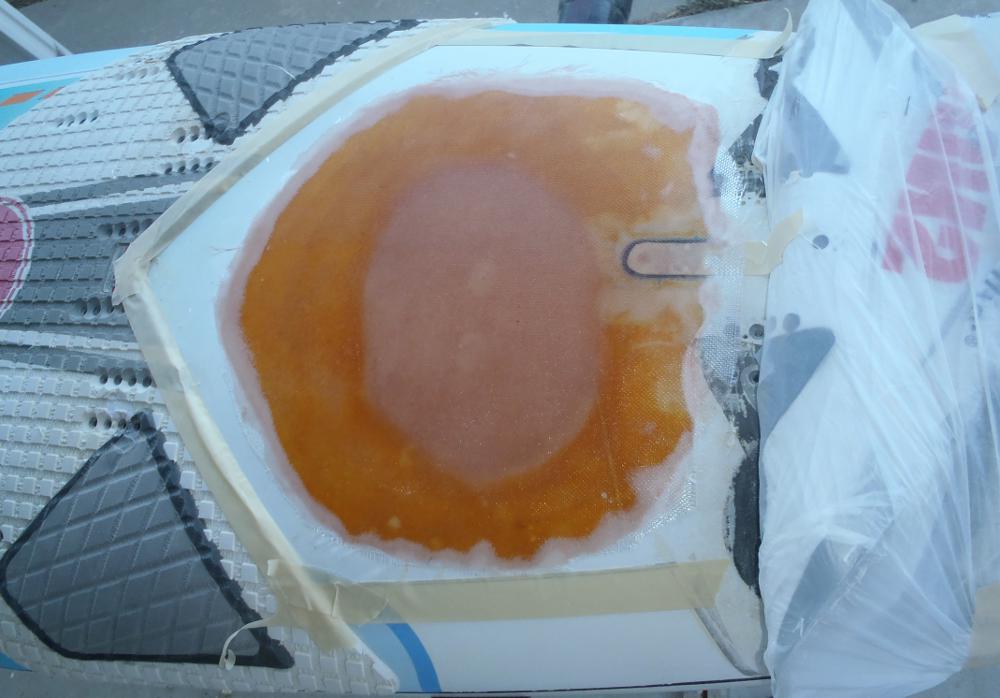

glassed over w/ well-staggered 3x 4oz cloth |
 |
|
new outer glass feathered out - nice and fair, yes? |
 |
|
faired & texture filled w/ VC Epoxy fairing compound
|
 |
|

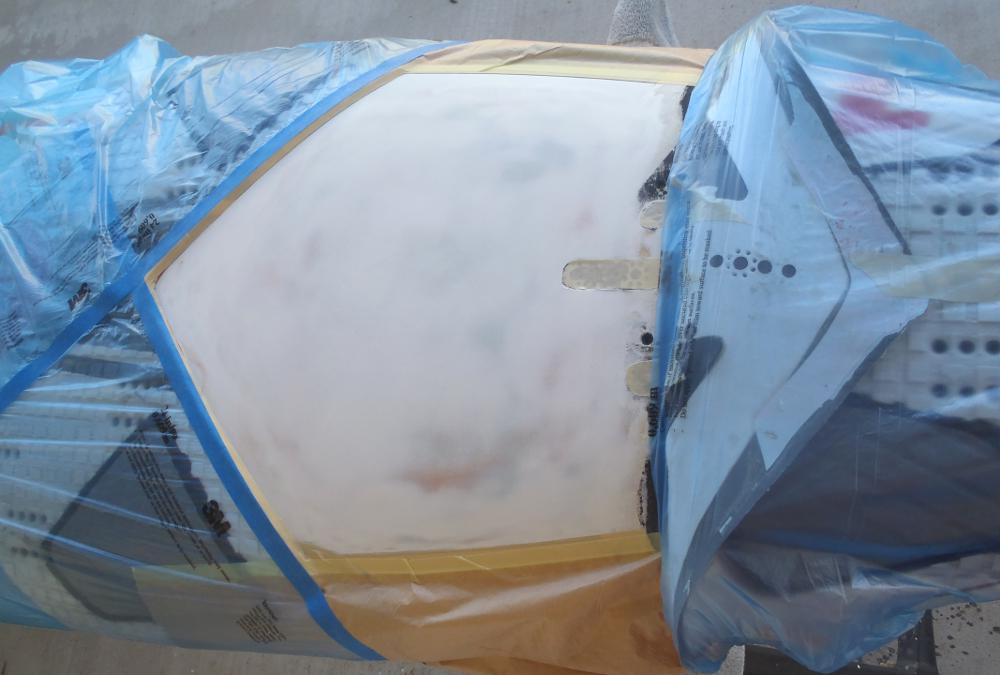

primed, sanded, washed, and taped off - all ready for
paint |
 |
|

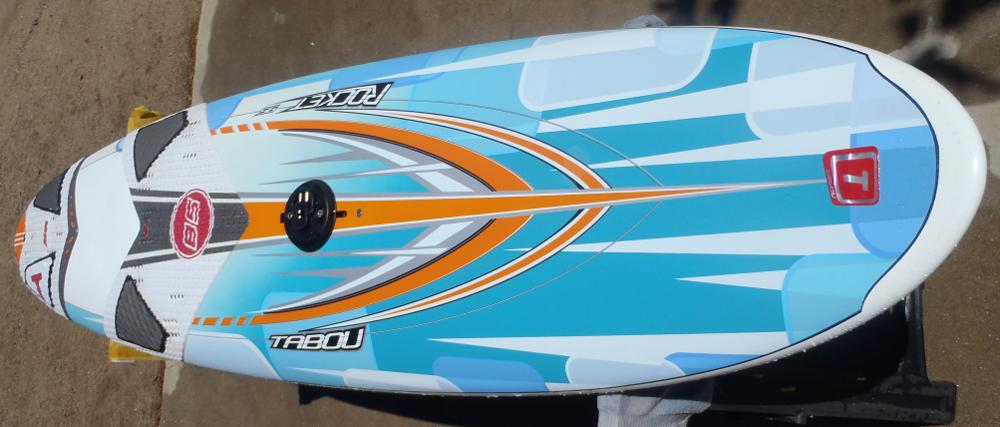

painted, pad glued back down, non-skidded, and bathed |
 |
|
minus some graphics, but otherwise ready to roll again.
total weight gain 1/2oz |
|
